cold storage room cold room panels polyurethane,fish storage cold room,cold room for sale

جزئیات محصول:

محل منبع:	چین
نام تجاری:	Yixing ICS
گواهی:	CE ISO SGS

پرداخت:

مقدار حداقل تعداد سفارش:	1 مجموعه / مجموعه
قیمت:	$1,000.00 - $2,000.00 / Set
قابلیت ارائه:	50 مجموعه / مجموعه در هر محله

مخاطب

همه محصولات

دستگاه یخ ساز Flake (75)

بلوک یخ ساز (63)

دستگاه لوله یخ ساز (13)

دستگاه یخ دوغاب (18)

ماشین بارش برف مصنوعی (15)

چیلر کندانسور تبخیری (11)

واحدهای برودتی کولر (12)

ردیف تبرید آلومینیوم (5)

اتاق سرد با ظرفیت خورشیدی (11)

واحدهای برودتی سردخانه (2)

توضیحات محصول جزئیات

درجه حرارت:	-50 ~ + 20	صنایع قابل استفاده:	فروشگاه های پوشاک ، فروشگاه های مصالح ساختمانی ، مغازه های تعمیرات ماشین آلات ، کارخانه تولیدی ، کار
وضعیت:	جدید	ولتاژ:	220 / 380V سفارشی
قدرت:	همه در دسترس است	ابعاد (L * W * H):	بعد اتاق سرد
وزن:	بستگی دارد	ضمانتنامه:	1 سال پس از زایمان
خدمات پس از فروش ارائه می شود:	قطعات یدکی رایگان ، نصب میدانی ، راه اندازی و آموزش ، خدمات تعمیر و نگهداری و تعمیرات میدانی ، پشتیب	کارکرد:	فریز کردن غذا / نگهداری تازه
برند تجاری:	بیتزر آلمانی	ضخامت فولاد رنگی:	0.426 / 0.5 / 0.6 / 0.8 میلی متر
ضخامت پانل:	50 میلی متر 75 میلی متر 100 میلی متر 120 میلی متر 150 میلی متر	نوع درب:	درب لولایی / کشویی / برگشتی / چرخشی
سیستم کنترل:	سیستم کنترل کاملاً خودکار	جنس استیل:	فولاد رنگی / فولاد ضد زنگ
مواد عایق:	فوم عایق پلی اورتان آلمان	طبقه اتاق سرد:	صفحه آلومینیوم ضد لغزش)
تراکم:	38 ~ 45 کیلوگرم در متر مکعب

Product Description

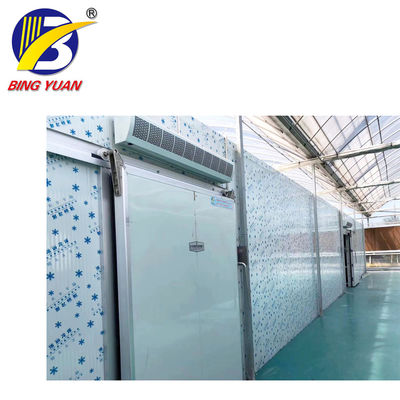

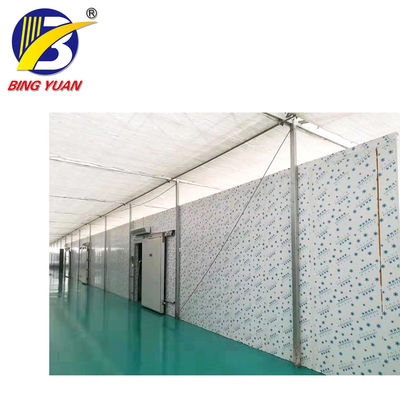

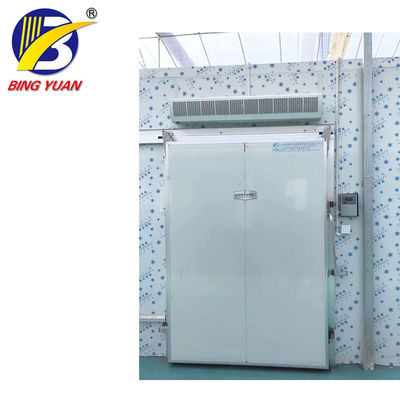

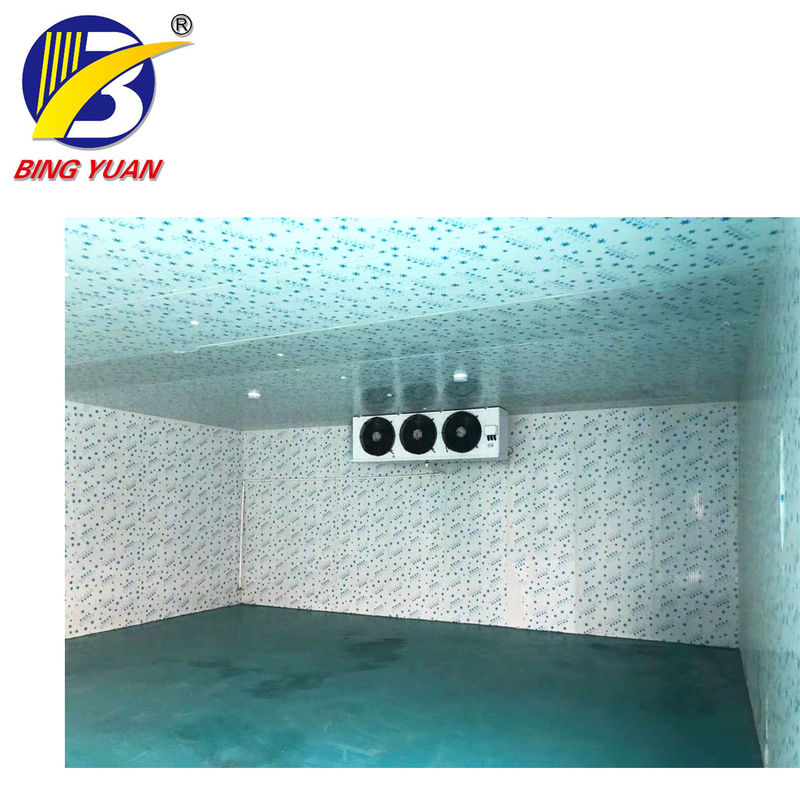

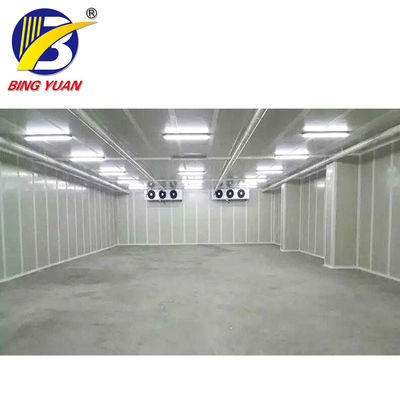

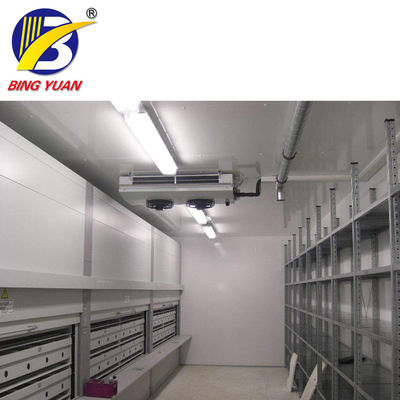

Yixing ICS Cold Room

Choice in every part of our cold room:

1. Evaporator is divided into aluminum alloy pipe row and cold air blower.

2. Insulation layer thickness ranges from 50~220 mm, it also depends on the temperature of the cold room.

3. Material of our cold room plate: stainless steel/color steel/galvanized steel (inside or outside).

4. Brand of compressor: Bitzer/Bock/Fusheng/Hanzhong/Danfoss/Copeland etc.

We can customize the cold room totally as your demands.

Features and advantages

1. Concavo convex structure
Panels are joined together by means of tongue and groove and locked together by cam- lock on each side of the panel to ensure air tight joints. There's no need of rivets, thus reduce the cost and save the time.

2. Easier and faster installation,can be expended or removed in the future.

3. Perfect heat insulation
density thermo insulated PUR foam up to 38kg/m³or above for cold-room heat insulation efficiency.

4. Various surface steel choices.
Color steel sheet/Stainless steel sheet/ Embossed aluminum sheet
The standard metal sheets are all smooth. Standard color of steel sheet is white-gray, others are natural metallic.

5. Low flammable
Low flammable PUR foam is used in the cold room panel, with fire retardant B2 grade.

6. hermetical
Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure sealing to avoid the cooling air leakage from the cool room or moisture inside the PU insulated panel for the best refrigeration and frozen storage result.

7. Load bearing
The compressive strength is150kpa above, people can walk on the floor panels and allow trolleys can go in and out.

Main Features

1) Energy-saving design, performance and efficiency, saving electricity in large degree.

2) Remote intelligent management system, automatic precision digital controller is easy to operate with high efficiency.

3) Imported European compressor, low noise and reliability, world renowned brand refrigeration accessories guaranteeing longer service life.

4) Adjustable indoor temperature, according to cooled products to adjust the suitable temperature.

Detailed Information

Cold Room Temperature
1~5 degree	Fresh Keeping Room	Preservation of fresh meat, dairy products, fresh eggs, fruits and vegetables
-10~-20 degree	Cold Storage Room	Mainly used for refrigerating food, and the temperature is kept in the range of -15~18 degree
-22~-25 degree	Low Temperature Room	Mainly used for refrigerating food, and the temperature is kept in the range of -15~18 degree
<-30 degree	Cold Freezer	Mainly used for quick freezing of foods, such as quick frozen dumplings, quick frozen vegetables, etc.

Certifications

CE Certificate Number:

M.2019.206.C0141

Evaporative Condenser

97% Response Rate

Cold Room

98% Response Rate

Air Cooler

99% Response Rate

Our Service

Pre-sales and After-sales Service

* Inquiry and consulting support. * Training how to instal the machine, training how to use the machine. * Sample testing support. * Engineers available to service machinery overseas. * View our Factory.

Packing & Delivery

Activities

About Yixing ICS

Yixing city Ice Source Refrigeration Equipment Limited is a comprehensive mordern manufacture of all kinds ice making plants, cold room, high-efficiency cold air blower, energy-saving evaporative condenser, aluminum alloy pipe row and various civil constructions, combined with cold room engineering.

ICS is located in Yixing, Wuxi, Jiangsu, CHINA. With over 20 year's successful experience in Chinese market, we focus on the technical innovation to improve the machine quality and strengthen innovation ability. By insisting on the spirit "unity, seeking truth, pioneering and dedication", we commit ourselves to research and development of new technology, striving to create a comprehensive refrigeration enterprise in China.
